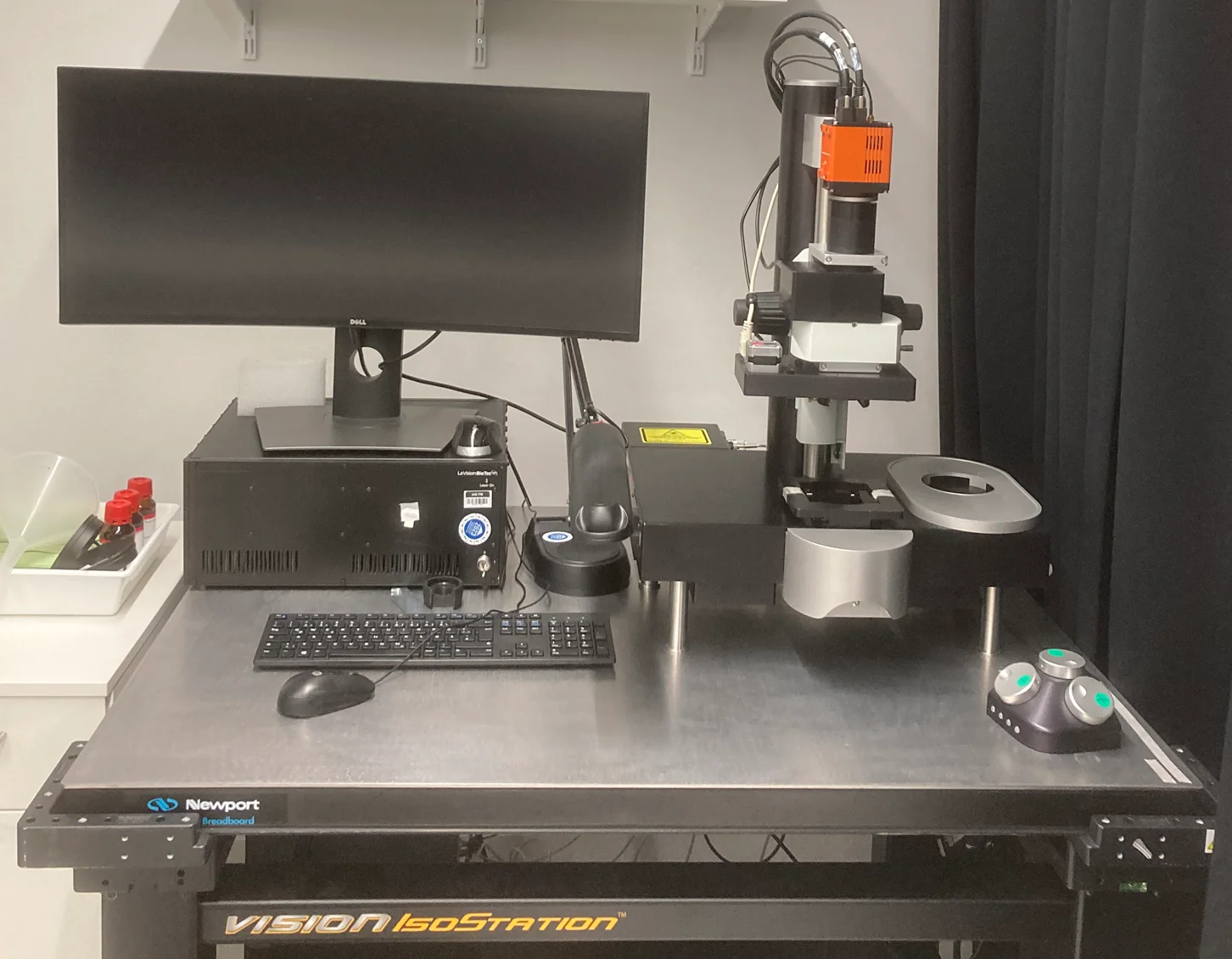

Miltenyi LaVision Ultramicroscope II
The Ultramicroscope II is a lightsheet microscope for fast 3D imaging of large specimens cleared with Ethyl-Cinnamate.
Funding information:
© MCF
Objectives:
| Mag. | NA | Immersion | WD (mm) |
| 1.3x | 0.10 | ECi | 9.0 |
| 12x | 0.53 | ECi | 9.0 |
Laser lines:
488 nm, 515 nm, 561 nm, 639 nm, 785 nm
Filters:
GFP, YFP, mCherry, Alexa 640, Alexa 780
Cameras:
pco.edge 4.2 sCMOS cameras
2048 x 2048 pixels, 6.5 x 6.5 µm2 pixel size
Accessories:
Sample holders (spiked and clamp-type)Quartz cuvettes (150 mL)
Software:
ImSpector v6.7
